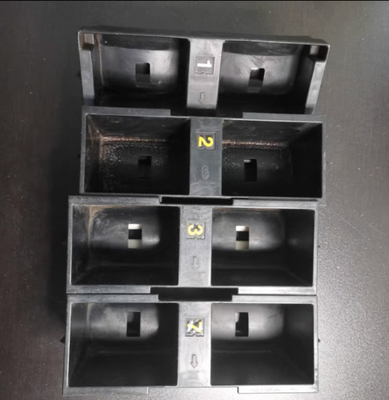

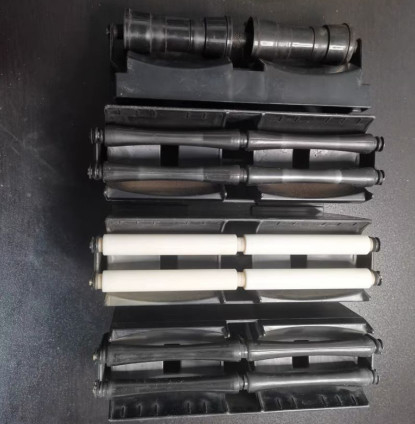

Noritsu QSF V30 Minilab Film Processor Crossover used
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Minilab Printer | Condition: | Used |
|---|---|---|---|
| Type: | Minilab Spare Part | For Used On: | Photolab |
| For Minilab Brand: | Noritsu Koki Qss | Part Name: | Crossover |
Please check our new listing minilab parts and printer ribbon
www.aliexpress.com/store/1102080414
For more prompt response, please contact us
Mob: 86 18376713855
Whatsapp: 86 18376713855
Email: linna@minilabspare-parts.com
We chat: idaminilab / 86 18376713855
Web:https://www.idaminilab.com/
Product Description
Noritsu QSF V30 Minilab Film Processor Crossover used
Packaging & Shipping
carton box
send by China post mail, DHL etc
Our Services
We offer full range of minilab parts for Noritsu,Fuji,konica and other China made minilabs, like doli,tianda,Sophia minilab.
Main products include:
1. Noritsu / Fuji /China made minilab machine
2. original,China made & used minilab spare parts
3. minilab accessories and minilab necessities
4. repair service, such as minilab laser, aom,PCB, power supply etc.
5. printer ribbon for Epson etc
6. LCD and LCD driver for most brand of minilabs.
Company Information
We have:
Noritsu minilab part,Fuji frontier part,minilab acceories,minilab necessities,aom driver etc
| 1 | 20200680-DR | Top cover | |
| 2 | 20200689-OR | Print trayl | |
| 3 | 20119034-0R | Print tray2 | |
| 4 | 20200699-0R | Light-shelter plate | |
| 5 | 20200688-0R | Positioning board (left) | |
| 6 | 21200030-0R | Cap, oiler pipe | |
| 7 | 20200687-0R | Wet air pipe | |
| 8 | 20200686-0R | Positioning board (right) | |
| 9 | 20200682-0R | Left-upper side cover | |
| 10 | 20200685-0R | Left-lower side cover | |
| 11 | 20200683-0R | Front-lower side cover | |
| 12 | 20200694-0R | Rear-upper side plate | |
| 13 | 20200702-0R | Small rear enclosing plate | |
| 14 | 20200690-0R | Rear-lower side plate | |
| 15 | 20200681-0R | Right-upper side cover | |
| 16 | 20200697-0R | Rear-right lower side cover | |
| 17 | 20200684-0R | Front-lower right side cover | |
| 18 | 99909401-0R | CD upper guide | |
| 19 | 99909402-0R | BF upper guide | |
| 20 | 99909403-0R | STB upper guide | |
| 21 | 99909404-0R | CD processing rack | |
| 22 | 99909405-0R | BF processing rack | |
| 23 | 99909406-0R | STB processing rack | |
| 24 | 40115002-0R | Knob | |
| 25 | 99909411-0R | Dryer rack | |
| 26 | 21200031-0R | Oiler pipe II | |
| 27 | 21200028-0R | 0iler pipe I | |
| 28 | 21200029-0R | Nut, oiler pipe | |
| 29 | 40401018-0R | Air filter | |
| 30 | 21024006-0R | Air filter cover (100x100) |
| 1 | 20200704-CR | Stand frame | 1 | |
| 2 | 99909434-OR | Replenishment tank assembly | 3 | |
| 3 | 21301002-CR | Effluent tank(3#) | 3 | |
| 4 | 21200035-0R | Enclosing cover, waste tank | 3 | |
| 5 | 90106112-〇R | Float switch (L=70) | 3 | |
| 6 | 21200025-〇R | Fixing plate of muddler | 3 | |
| 7 | 21200024-OR | Muddler | 3 | |
| 8 | 20200692-0R | Baffle board | 1 | |
| 9 | 20200693-0R | Front baffle board | 1 | |
| 10 | 20200703-0R | M16 leveling foot | 4 | |
| 11 | 40119007-OR | Castor WP60 | 4 | |
| 12 | 20900017-0R | Column nut | 3 | |
| 13 | 20200696-0R | Installation plate of blower | 1 | |
| 14 | 90105009-0R | Circulation pump cooling fan | 3 | |
| 15 | 20219053-0R | Fixing foot for lower side board | 1 | |
| 16 | 20219054-0R | Fixing foot I for lower side | 1 | |
| 17 | 40334003-0R | Motor controller | 1 | |
| 18 | 21200033-0R | Installation plate for motor controller | 1 | |
| 19 | 90105008-0R | Fan 1 | 1 | |
| 20 | 21200034-0R | Installation plate of fan | 1 | |
| 21 | 90102003-0R | Circulation pump | 6 | |
| 22 | 21122016-0R | Radiator ( L =126) | 4 | |
| 23 | 21122017-0R | Radiator ( L =216) | 2 | |
| 24 | 20219042-0R | Installation plate of pump | 1 | |
| 25 | 21013003-0R | Right-angle pipe | 12 | |
| 26 | 21100100-0R | Subassembly, electrical box | 1 | |
| 27 | 20219052-0R | Fixing plate of rear side plate | 1 | |
| 28 | 21100101-0R | Enclosed plate, electrical box | 1 |
| p/n | Description | Q'ty | ||
| 29 | 20219041-0R | Installation plate of ball valve | 1 | |
| 30 | 20219040-0R | Installation plate for filter device | 1 | |
| 31 | 21117008-0R | Grounding block (enclosed) | 1 | |
| 32 | 21117009-0R | Grounding block (opened) | 1 | |
| 33 | 40328005-0R | Net cover of fan(092) | 1 | |
| 34 | 40328007-0R | Net cover of fan (0120) | 3 | |
| 35 | 40336002-0R | Effluent valve | 5 | |
| 36 | 21306100-0R | Floating ball | ||
| 37 | 21013026-0R | Valve connector I | 3 | |
| 38 | 21000032-0R | Ball valve | 3 | |
| 39 | 21013027-0R | Valve connector II | 3 | |
| 40 | 99909408-0R | strainer | 3 | |
| 41 | 21013028-0R | connector | 3 | |
| 42 | 21017001-0R | Connecting nut | 3 | |
| 43 | 21015001-0R | Effluent tank cap | 3 | |
| 44 | 21015002-0R | Replenishment tank cap | 3 | |
| 45 | 20900001-0R | Valve cap | 5 | |
| 1 | 20219059-0R | Enclosing cover, probe | 1 | |
| 2 | 20219060-0R | Entrance upper plate | 1 | |
| 3 | 20219058-0R | Entrance lower plate | 1 | |
| 4 | 20119032-0R | Long enclosing board | 1 | |
| 5 | 21000003-0R | Filter pipe | 5 | |
| 6 | 40118001-0R | Chemical filter | 5 | |
| 7 | 21000002-0R | Filter stopper | 5 | |
| 8 | 21200040-0R | Gear cover | 1 | |
| 9 | 20900020-0R | Nut, M50 | 5 | |
| 10 | 20100771-0R | Sub-tank | 5 | |
| 11 | 21200027-0R | Filter cover | 5 | |
| 12 | 20219050-0R | Right blocking plate | 1 | |
| 13 | 21200026-0R | Sub-tank cover | 5 | |
| 14 | 90101002-0R | CD Heater (600W, 00Cr) P27 | 1 | |
| 15 | 90101003-0R | BF Heater (400W,Ta) | 1 | |
| 16 | 90101004-0R | STB1 Heater (400W, 00Cr) P29 | 1 | |
| 17 | 90101007-0R | STB2 Heater (400W, 00Cr) P30 | 1 | |
| 18 | 90101006-0R | STB3 Heater (600W, 00Cr) P31 | 1 | |
| 19 | 90106108-0R | CD/ STB3 float switch (L=62) | 2 | |
| 20 | 90106109-0R | BF float switch (L=49) | 1 | |
| 21 | 90106110-0R | STB1 float switch (L=74) | 1 | |
| 22 | 90106111-0R | STB2 float switch (L=67) | 1 | |
| 23 | 21200020-0R | Humidity-absorbing blower | 1 | |
| 24 | 90105008-0R | Fan 1 | 1 | |
| 25 | 21200039-0R | Exit cover for wet air | 1 | |
| 26 | 20900027-0R | Chamber of replenish pump | 1 |
| p/n | Description | Q'ty | ||
| 27 | 20900025-DR | Enclosed cover (I) of replenish chamber | 1 | |
| 28 | 20900026-〇R | Enclosed cover of replenish chamber | 1 | |
| 29 | 90102004-0R | Replenishment pump | 3 | |
| 30 | 21117007-DR | Installation plate, linkage switch | 1 | |
| 31 | 21117011-0R | Enclosing plate, linkage switch | 1 | |
| 32 | 40319179-0R | Interlock switch | 1 | |
| 33 | 40328009-0R | Net cover of blower 酬 | 1 | |
| 34 | 90105007-0R | Fan 2 | 1 | |
| 35 | 90106204-0R | Temperature sensor (T_165) | 5 | |
| 36 | 21012002-0R | Replenisher pipe | 3 | |
| 37 | 21024001-0R | Replenisher nut | 2 | |
| 38 | 21024002-0R | Replenisher connector | 2 | |
| 39 | 40401006-0R | Single-direction valve | 2 | |
| 40 | 40401005-0R | Bellow | 1 | |
| 41 | 21024005-0R | Replenishment box bolt | 2 | |
| 1 | 20119031-0R | Chain orbit | 1 | |||
| 2 | 21419027-QR | Board of transport chain | 1 | |||
| 3 | 40111013-0R | Bearing 80100 (d=10 D=26 B=8) | 14 | |||
| 4 | 20406153-QR | Sprocket 14-tooth | 7 | |||
| 5 | 40110034-0R | Spring washer for hole | 7 | |||
| 6 | 20419029-0R | Fixing socket of tension sprocket | 1 | |||
| 7 | 21200036-0R | Spring | 2 | |||
| 8 | 20419030-0R | Fixing bracket for tension sprocket | 1 | |||
| 9 | 20424004-〇R | Part 1 of fixing bracket for tension sprocket | 1 | |||
| 10 | 20419031-QR | Positioning bracket I of sprocket, tightening | 1 | |||
| 11 | 20419028-〇R | Movable board | 1 | |||
| 12 | 20406157-〇R | Small shaft, transport, dryer | 1 | |||
| 13 | 40111001-〇R | Bearing 1080098 (d=8 D=19 B=6) | 14 | |||
| 14 | 20406155-〇R | Bush for connection I | 1 | |||
| 15 | 20406156-〇R | Sprocket I | 1 | |||
| 16 | 20419032-〇R | Shaft board, sprocket, bridge | 1 | |||
| 17 | 20119030-〇R | 〇rbit of short chain | 1 | |||
| 18 | 20414007-〇R | Airproof ring | 6 | |||
| 19 | 20406151-〇R | Small shaft for transport | 6 | |||
| 20 | 20406150-0R | Bush for connection | 6 | |||
| 21 | 90103004-〇R | Main motor | 1 | |||
| 22 | 21117006-0R | Installation plate for motor | 1 | |||
| 23 | 20406154-〇R | Sprocket 15-tooth | 1 | |||
| 24 | 21117010-〇R | Grounding block, motor | 1 | |||
| 25 | 20219049-〇R | Left blocking plate | 1 | |||
| 26 | 20406049-〇R | Nut, M28 | 7 | |||
| 27 | 20303038-0R | Cear/26-tooth, m=1,5 (击10 round arch) | 1 | |||
| LL24004 | ||||||
| # | p/n | Description | Q'ty | |
| 28 | 20303029-0R | Gear/22-tooth, m=1,5 (击10 round arch) | 6 | |
| 29 | 20100770-0R | Chemical tank | 1 | |
| 30 | 21117014-〇R | Enclosing plate of keypad's bracket | 1 | |
| 31 | 21117012-〇R | Upper bracket of keypad | 1 | |
| 32 | 21117013-〇R | Lover bracket of keypad | 1 | |
| 33 | 21117015-0R | Cushion, copper, short | 4 | |
| 34 | 99909420-〇R | Display screen assy | 1 | |
| 35 | 21117016-0R | Cushion, copper, long | 4 | |
| 36 | 90109106-〇R | Keyboard | 1 | |
| 37 | 21100098-0R | Subassembly, main control chamber | 1 | |
| 38 | 90105007-0R | Fan 2 | 1 | |
| 39 | 21100099-0R | Enclosing cover, main control chamber | 1 | |
| 40 | 40328005-〇R | Fan net cover | 1 | |
| 41 | 20403061-〇R | Sprocket, transport (17-tooth/plastic) | 6 | |
| 42 | 40106037-0R | Key 5x2 4 | 1 | |
| 43 | 40106031-〇R | Key 4x12 | 7 | |
| 44 | 21024004-〇R | Felt | 2 | |
| 45 | 40112020-〇R | Chain I | 1 | |
| 46 | 40112021-〇R | Chain II | 1 | |
| 47 | 40333005-〇R | Power Supply 1 | 1 | |
| 48 | 90109102-〇R | CPU PCB | 1 | |
| 49 | 90109103-〇R | Relay PCB | 1 | |
| 50 | 20300050-〇R | U ring (批) | 6 | |
| 51 | 40110006-〇R | E-ring (批) | 9 | |
| 52 | 21116004-〇R | Bolt cushion | 8 |
| 1 | 20319043-0R | Cover board | 1 | |||
| 2 | 20305150-0R | Guide | 33 | |||
| 3 | 20308041-0R | Positioning pole, guide | 1 | |||
| 4 | 20304085-0R | CD Upper wallboard (right) | 1 | |||
| 5 | 20304070-0R | CD Upper wallboard (left) | 1 | |||
| 6 | 20316044-0R | Cushion for stopper | 2 | |||
| 7 | 20319041-0R | Stopper | 2 | |||
| 8 | 20324050-0R | Fulcrum pin | 2 | |||
| 9 | 20316036-0R | Column cushion | 2 | |||
| 10 | 20309046-0R | Bridge shaft | 1 | |||
| 11 | 20319040-0R | Assembled board (with ^16 hole) | 1 | |||
| 12 | 20319056-0R | Assembled board (without ^16 hole) | 1 | |||
| 13 | 20319044-0R | Baffle plate | 1 | |||
| 14 | 20309044-0R | Bridge shaft | 2 | |||
| 15 | 20303231-0R | Cear/17-tooth,m=1 (击8 round orifice) | 2 | |||
| 16 | 20303232-0R | Cear/17-tooth, m=1 (缺 round arch) | 2 | |||
| 17 | 20308045-0R | Roller bush (^12x^8) | 4 | |||
| 18 | 20301504-0R | Rubber roller with outer gear, $25,5 | 1 | |||
| 19 | 40111100-0R | Shaft bearing, plastic, 608 (d=8 D=22 B=7) | 4 | |||
| 20 | 20309045-0R | Groove rubber roller | 1 | |||
| 21 | 20310021-0R | Twisted spring (right) | 2 | |||
| 22 | 20505032-0R | Inlet guide pan of Dev. | 1 | |||
| 23 | 40111101-0R | Shaft bearing, plastic, 6000 (d=10 D=26 B=8) | 2 | |||
| 24 | 20303215-0R | Gear, 19-tooth, transport, m=1,5 | 1 | |||
| 25 | 20306013-0R | Transport bar | 1 | |||
| 26 | 20303216-0R | Gear/19-tooth, m=1,5 ($9 round orifice) | 1 | |||
| LL24005 | ||||||
| # | p/n | Description | Q'ty | |
| 27 | 20301512-0R | Spiral roller, $25,5 | 1 | |
| 28 | 20302301-0R | Positioning bar, $10 | 2 | |
| 29 | 20303220-0R | Gear/19-tooth, m=1,5 ($9 round orifice) | 1 | |
| 30 | 20303062-0R | Gear/22-tooth, m=1.5 ($8 round arch) | 1 | |
| 31 | 20310020-0R | Twisted spring (left) | 2 | |
| 32 | 20301510-0R | Taper squeegee, $25.5 | 1 | |
| 33 | 20300050-0R | U ring ($6) | 4 | |
| 34 | 40106012-0R | Spring column pin 3x18 | 1 | |
| 35 | 20308054-0R | Cushion, twisted spring | 4 |
Other Products
-
NORITSU KOKI PUMP W405847 / W405847-01 I0121300 MODEL KDP-2B KDP-5B H500 L500 MINILAB
-
D002877 Crossover rack for Noritsu QSS 3001/ 3300/3301/3501 minilab
-
A056617 Driver Shaft Rack Unit Noritsu QSS 3201 3202 3411 3701HD 3702HD 3801 2901 Minilab Machine
-
Noritsu qss 3201 3202 3411 3701 3702 3703 3704 3701hd 3702hd paper magazine part
-
NORITSU QSS3501 minilab CABLE UNIT W412499-01 / W412499
-
D006533 / D006533-00 rack main body for Frontier 7500 Noritsu 3501
